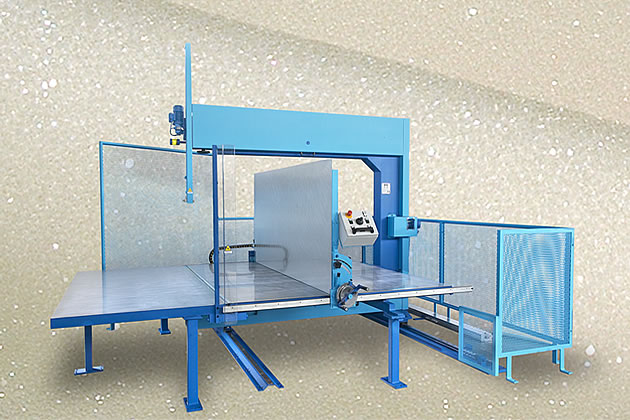

VMT 2000

Available info

• Moving of the cutting head through a big-section tempered and rectified steel guide, with ball-recirculating runners to prevent wear and tear risks
• Push-button commands with accelerator-joystick to control the cutting head’s moving (the cutting speed can be changed by moving the lever)
• Manual advancement system for the square, with mechanical device for repeated cuttings of millimeter-division sheets, up to 140 mm.
• Adjustable disc brake by operator’s side
• Electric panel in metal case with low-tension commands
• Blade detection-sensor to stop the machine in case of blade’s breakage
• Motorized-grinders sharpener
• Head run = cm. 230
• Table width from the square support to the blade = cm. 220
• Table width from the blade to the external platform = cm. 125
• Useful height for cutting = cm. 130
• Square height = cm. 110
• Power consumption at 380 Volt 50 Hz = 4 KW.
